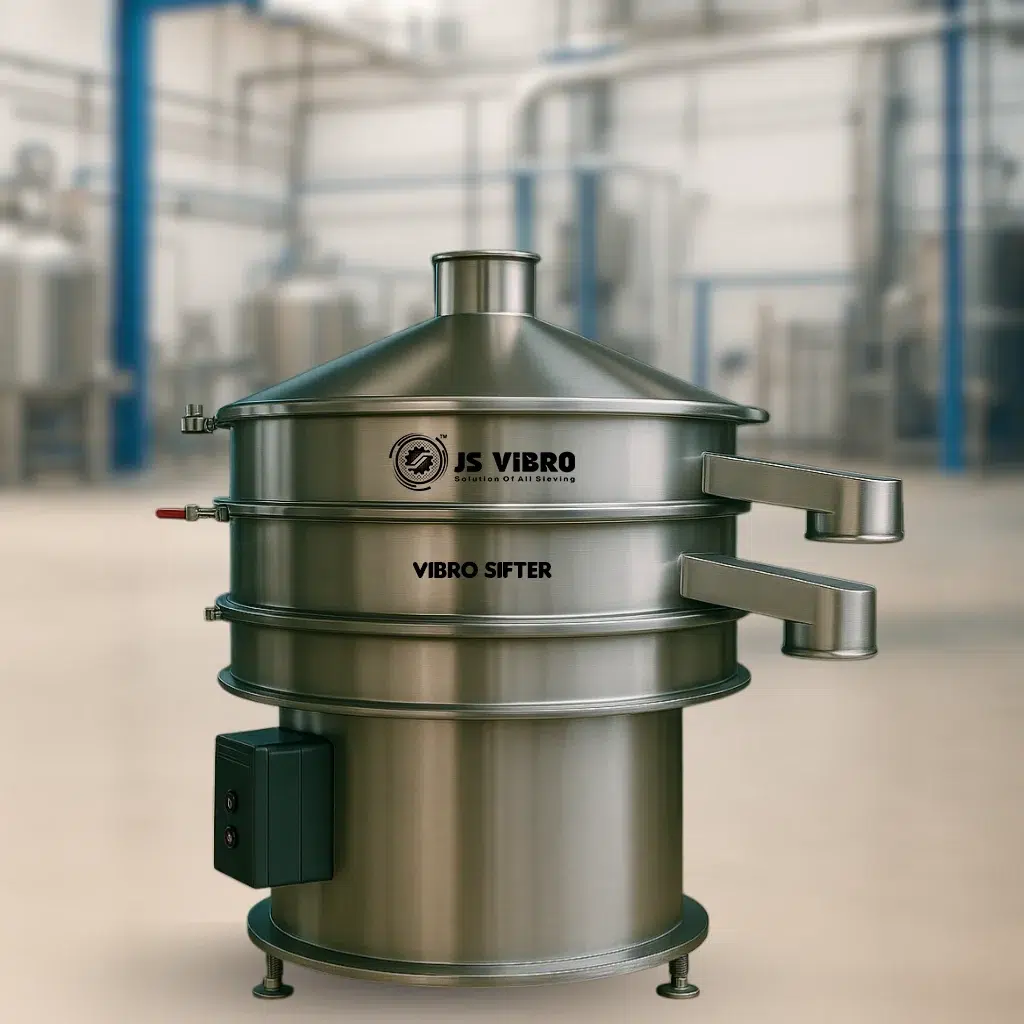

A vibro sifter machine is an industrial screening and separation device that classifies bulk materials powders, granules, and liquids based on particle size using controlled vibration. Also known as a vibro separator, vibrating screen, or vibro screen, it is a critical piece of equipment in any manufacturing process that demands consistent particle sizing and contamination-free output.
The machine uses a vibratory motor mounted on the base to generate circular or multi-plane oscillating motion. This motion causes material fed through the inlet to travel across one or more mesh screens. Particles finer than the mesh opening pass through to the outlet below, while oversized particles or foreign matter are discharged separately. The result is precise, uniform classification with minimal manual intervention.
JS Vibro’s machines are built with quick-clamp clamping rings, tool-free screen access, balanced spring suspension, and low-noise motor assemblies, making them ideal for both batch production and continuous manufacturing environments.
JS Vibro is a leading Vibro Sifter Machine Manufacturer in India, supplying high-performance vibro sifter machines to pharmaceutical, food processing, chemical, cosmetic, and mineral industries across India and globally. Based in Vadodara, Gujarat, we manufacture precision-engineered vibro sifters in SS 304 and SS 316 stainless steel, built to comply with GMP and FDA standards. With 12+ years of manufacturing expertise and 500+ clients served, JS Vibro is the most trusted name when it comes to accurate particle separation and sieving solutions.

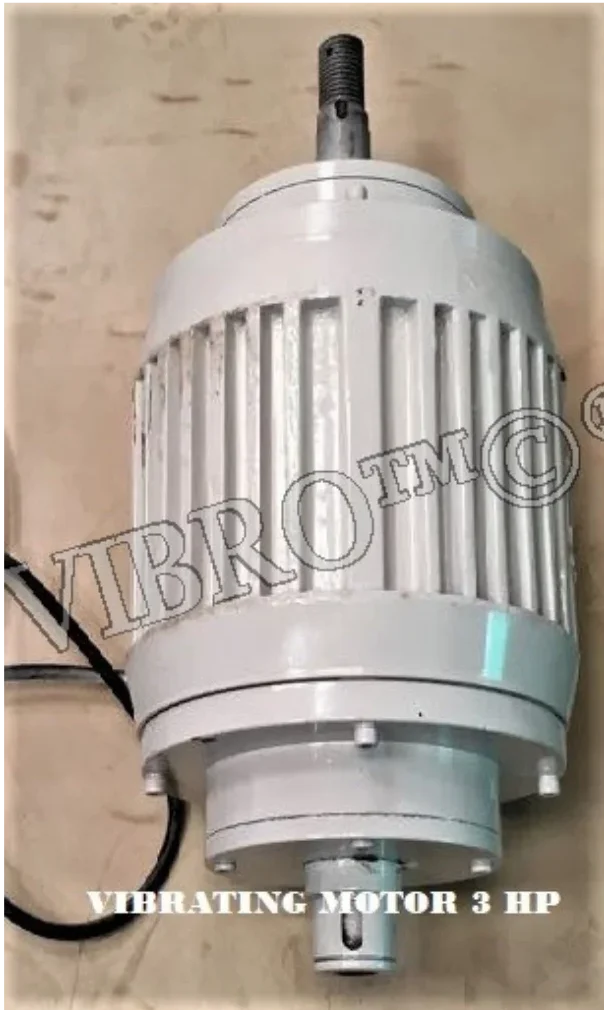

The vibro sifter working principle is based on gyratory vibrations produced by an unbalanced vibratory motor fitted at the base of the machine. The upper and lower eccentric weights on the motor shaft are set at specific angles to generate three-dimensional motion horizontal, vertical, and tangential, that drives material across the sieve surface in a consistent spiral pattern.
JS Vibro manufactures a complete range of vibro sifter models tailored to every industry need:
Round Vibro Sifter The standard round vibro sifter uses high-frequency circular vibration for precise multi-deck separation of fine powders and granules. Available in 24″ to 72″ diameters. Ideal for pharmaceutical, spice, and chemical applications.
Pharma Vibro Sifter Specifically designed for pharmaceutical manufacturing, this GMP-compliant model features mirror-polished SS 316L contact parts, cGMP-standard gaskets, FDA-approved seals, and a fully enclosed design to prevent contamination. Perfect for API sieving, tablet granule screening, and sterile powder handling.
Rectangular Vibro Sifter Uses linear vibration for high-capacity, large-volume screening. Ideal for coarse particle separation in cement, fertilizer, mineral, and heavy chemical industries where throughput is a priority over fineness.
Circular Vibro Sifter A compact, low-noise design with uniform circular sieving motion. Ideal for fine powders in cosmetics, food, and specialty chemicals where space is limited and quiet operation is essential.
Oil Industry Vibro Sifter Specially engineered for oily, sticky, or viscous materials. Features special coatings, non-stick mesh options, and enhanced discharge mechanisms for smooth, clog-free operation in lubricant, oil, and grease applications.
NOTE : Custom specifications available on request. Contact our team for a tailored configuration
| Parameter | Specification |
|---|---|
|
Material |
SS 304 / SS 316 / SS 316L |
|
Machine Diameter |
18 inch to 96 inch |
|
Capacity |
50 kg/hr to 5,000+ kg/hr |
|
Number of Decks |
1, 2, or 3 decks |
|
Motor Power |
0.5 HP to 3 HP |
|
Voltage |
220V Single Phase / 440V Three Phase |
|
Mesh Size |
20 micron to 20 mm |
|
Surface Finish |
Mirror Polish / Matte / Bead Blast |
|
Compliance |
GMP, FDA, cGMP, ATEX (Zone 21 & 22) |
|
Frame |
MS Powder Coated / Full SS |
High Screening Efficiency Our dual-weight eccentric motor technology ensures consistent vibration amplitude across the full sieve surface, delivering up to 99% screening efficiency even for ultra-fine powders (20–75 microns).
GMP & FDA Compliant Design All contact parts are manufactured in SS 304 or SS 316L. Gaskets, seals, and clamps are made from FDA approved food-grade materials. The crevice-free construction eliminates contamination risk essential for pharmaceutical and food applications.
Easy Cleaning & Maintenance Quick-clamp ring design allows full screen deck removal in under 2 minutes no tools required. This makes CIP (clean-in-place) and screen changeover fast, reducing downtime and production losses.

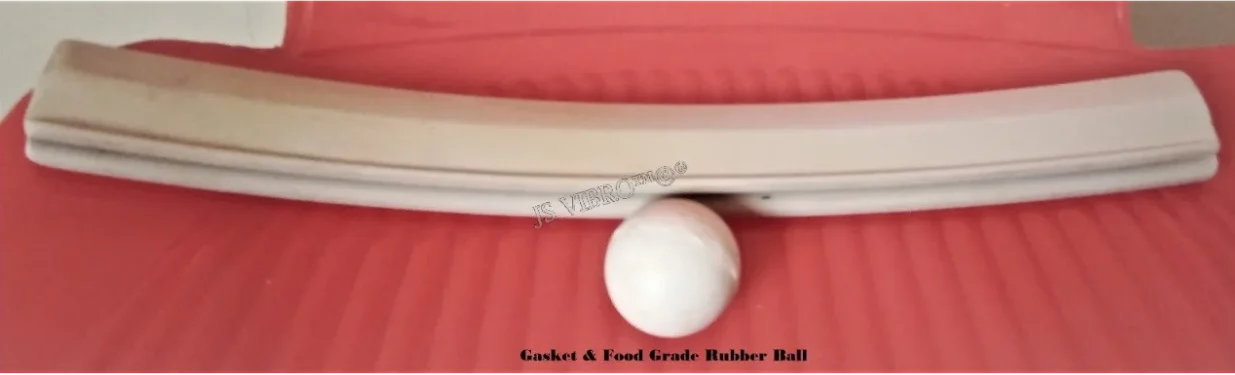

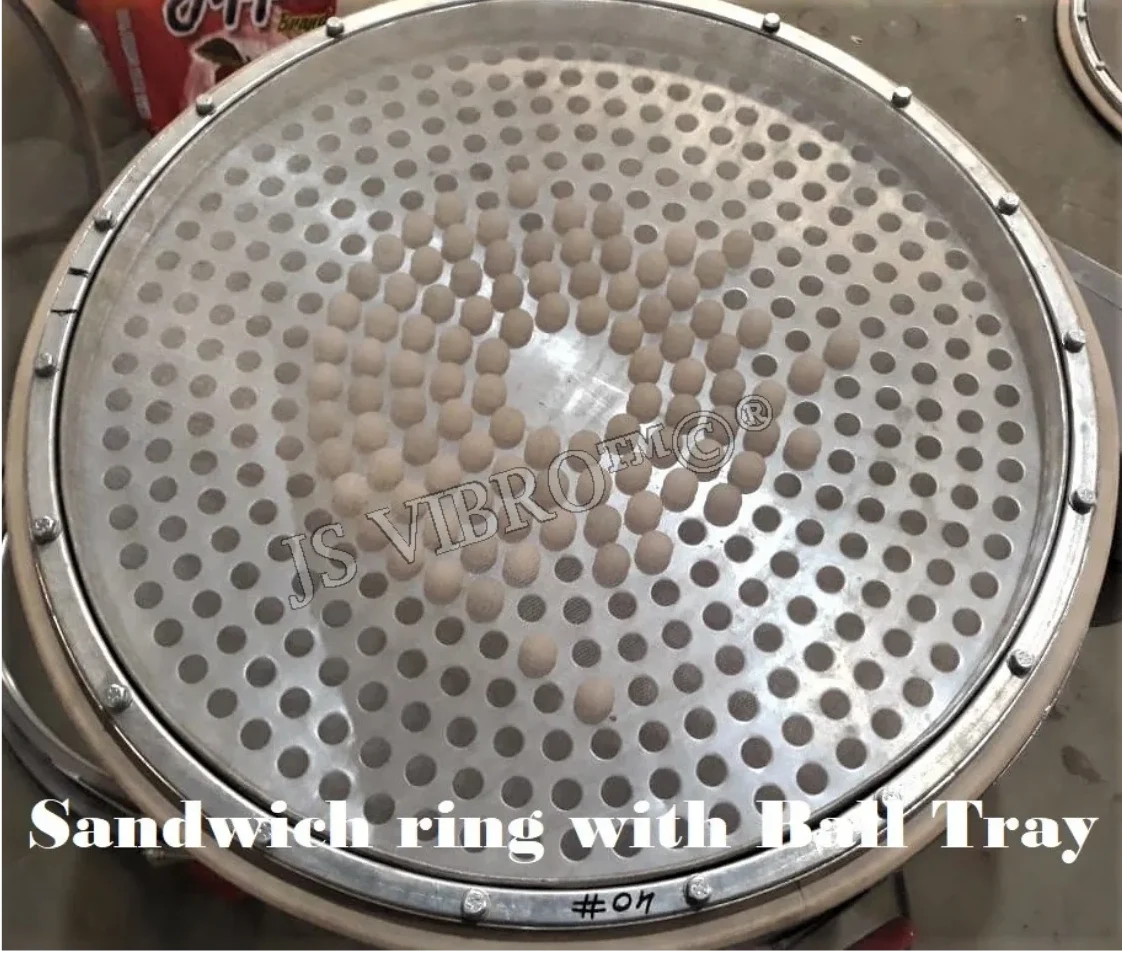

Anti-Blinding Technology Optional ultrasonic deblinding systems, ball-tray deblinding kits, and rotary brush mechanisms prevent mesh clogging, ensuring uninterrupted performance when handling hygroscopic or sticky powders.
Multi-Deck Separation Single-pass separation into 2 or 3 grades simultaneously. Eliminates the need for multiple machines and reduces floor space requirements by up to 60%.

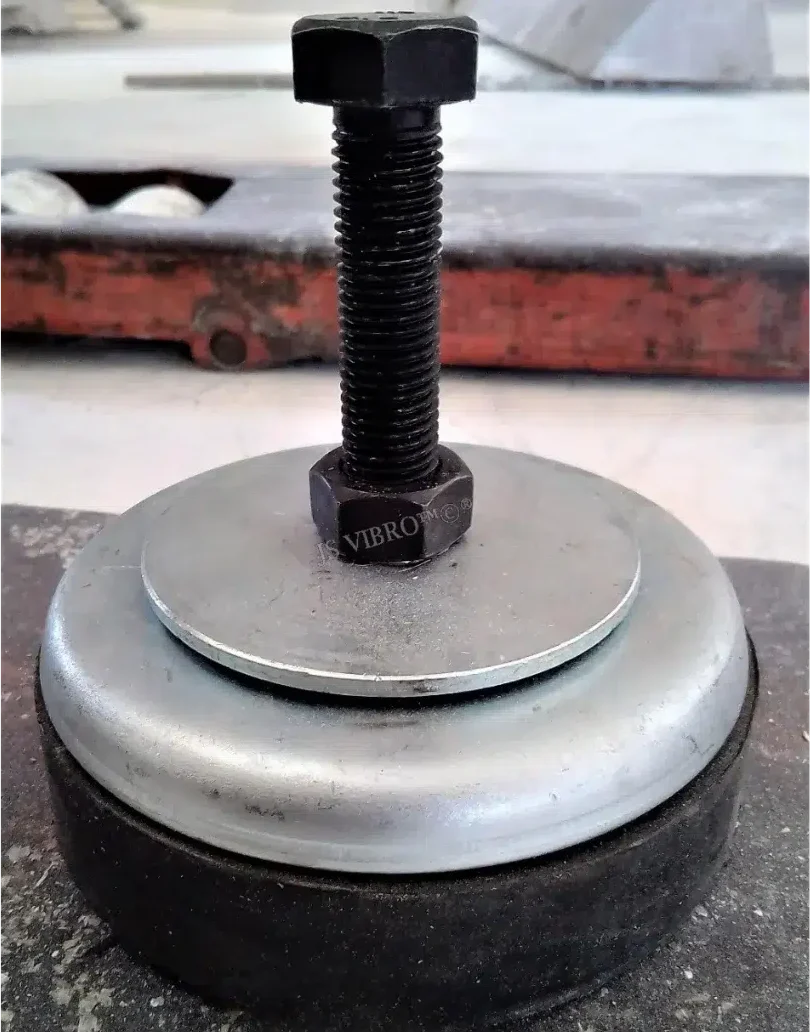

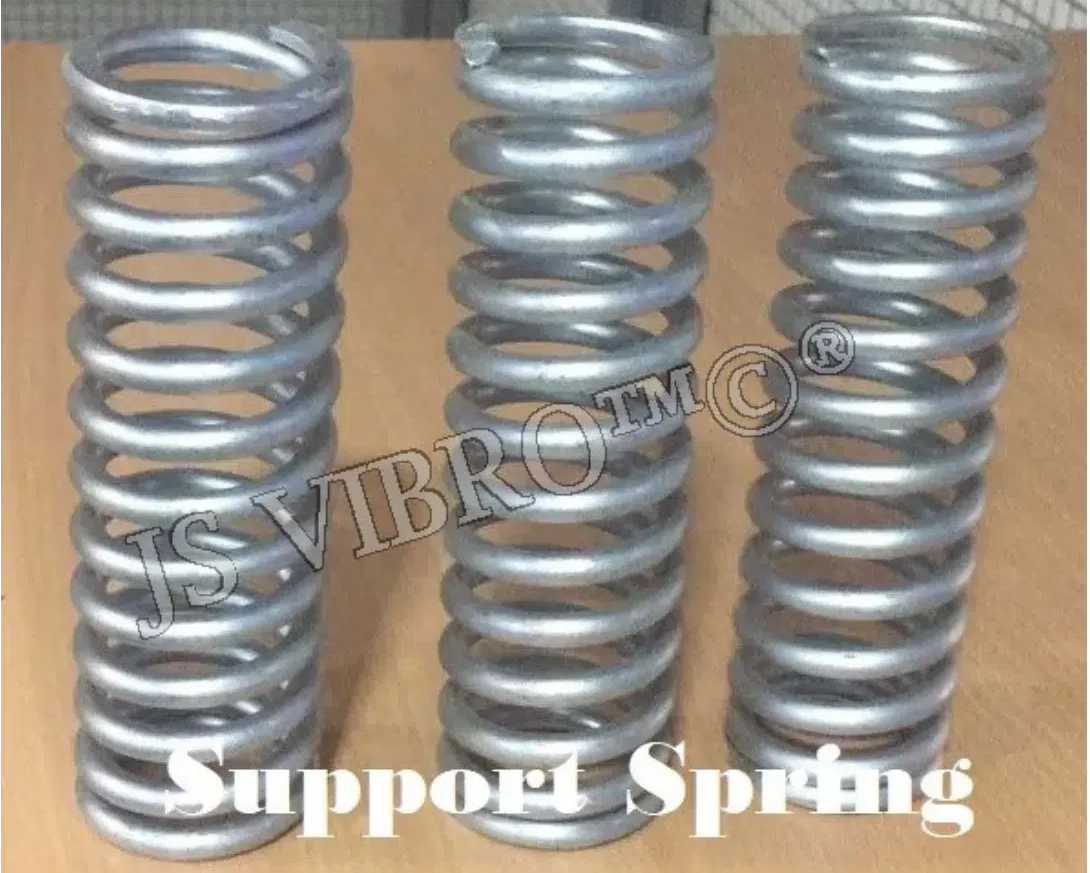

Low Noise & Vibration Isolation Spring suspension isolators absorb structural vibration and reduce noise to below 75 dB, making the machine compliant for use in noise-sensitive production environments.
Custom Configurations Available with flame-proof (ATEX Zone 21/22) motors, SS base frames, custom inlet/outlet orientations, nitrogen purge connections, and validation documentation (IQ/OQ/PQ) for regulated industries.
| Model Type | Approx. Price Range (INR) |
|---|---|
|
Basic Round Vibro Sifter (24″) |
₹45,000 – ₹70,000 |
|
Standard Round Vibro Sifter (30″–48″) |
₹70,000 – ₹1,20,000 |
|
Pharma GMP Vibro Sifter |
₹1,00,000 – ₹1,80,000 |
|
Multi-Deck (2/3 deck) Vibro Sifter |
₹1,20,000 – ₹2,50,000 |
|
Ultrasonic Vibro Sifter |
₹1,80,000 – ₹3,50,000 |
|
Rectangular / Large Capacity Vibro |
Capacity Vibro₹1,50,000 – ₹4,00,000+ |
All prices are indicative. Contact JS Vibro for an exact quote based on your application, capacity, and material requirements.
Agriculture & Fertilizers — Granule sizing, seed grading, fertilizer powder separation, soil amendments classification.
Minerals & Metals — Sand grading, silica screening, metal powder classification, mineral ore separation.
Plastics & Polymers — Pellet grading, plastic powder sieving, resin particle classification, masterbatch screening.
Cosmetics — Talc sieving, face powder classification, pigment separation, glitter grading.
Cement & Ceramics — Cement powder screening, ceramic particle classification, glass powder sieving.
Yes, our Pharma Vibro models are GMP compliant and feature mirror-polished stainless steel contact parts along with hygienic seals to ensure contamination-free screening.
Our Vibro Sifters are capable of processing powders, granules, slurries, and liquids across industries including food, pharmaceuticals, chemicals, cosmetics, plastics, and edible oils.
Yes, we offer comprehensive after-sales support, including spare parts, mesh screens, servicing, and technical assistance to ensure your Vibro Sifter operates efficiently.
JS Vibro is one of the most respected Vibro Sifter Manufacturers in India, trusted by 500+ clients across pharmaceuticals, food, chemicals, and engineering industries. Here’s what sets us apart:
12+ Years of Manufacturing Experience — Deep domain knowledge in designing sieving solutions for complex industrial applications.
20,000 Sq. Ft. Manufacturing Facility — Located in GIDC Waghodia, Vadodara — a recognized hub for industrial machinery manufacturing in India.
In-House Quality Control — Every machine undergoes strict quality testing including vibration balance check, mesh integrity test, and finish inspection before dispatch.
Customisation Capability — We engineer machines from scratch for non-standard applications. Unusual mesh sizes, multi-outlet configurations, explosion-proof assemblies — we build it all.
Pan-India & Export Supply — We supply vibro sifters to clients across Mumbai, Pune, Ahmedabad, Surat, Delhi, Hyderabad, Bangalore, Chennai, and export to Southeast Asia, Africa, and the Middle East.
After-Sales Support — Spare parts, mesh screens, motor assemblies, and on-site servicing available across India. Most spare parts dispatched within 24 hours.
Competitive Pricing — Direct manufacturer pricing with no middlemen. You get factory-direct quality at the best value.
